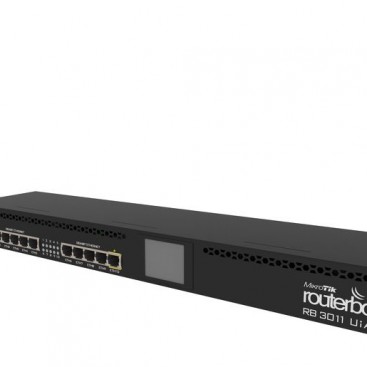

RB3011UiAS-RM1U rackmount, 10xGigabit Ethernet, USB 3.0, LCD, PoE out on port 10, 2×1.4GHz CPU, 1GB RAM, RouterOS L5
The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.
RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.
Specifications
Details |
Product code |
RB3011UiAS-RM |
Architecture |
ARM 32bit |
CPU |
IPQ-8064 |
CPU core count |
2 |
CPU nominal frequency |
1.4 GHz |
Dimensions |
443x92x44mm |
License level |
5 |
Operating System |
RouterOS |
Size of RAM |
1 GB |
Storage size |
128 MB |
Storage type |
NAND |
Tested ambient temperature |
-30 + 70 C |
Suggested price |
$179.00 |
Powering
Details |
Max Power consumption |
10W |
PoE in |
Passive PoE |
PoE out |
Passive PoE |
PoE in input Voltage |
10-30 V |
Number of DC inputs |
2 (DC jack, PoE-IN) |
DC jack input Voltage |
10-30 V |
Ethernet
Details |
10/100/1000 Ethernet ports |
10 |
Fiber
Peripherals
Details |
Serial port |
RJ45 |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB 3.0 type A |
Max USB current (A) |
1 |
Other
Details |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
Included parts
