CCR1016-12S-1S+1U rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6
CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second – Cloud Core Router is your best choice.

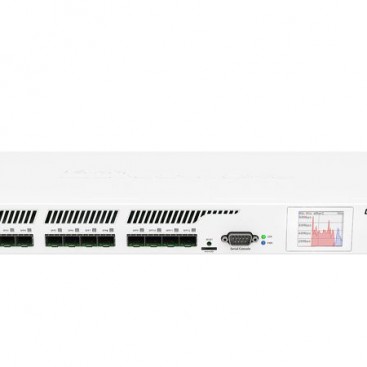

This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

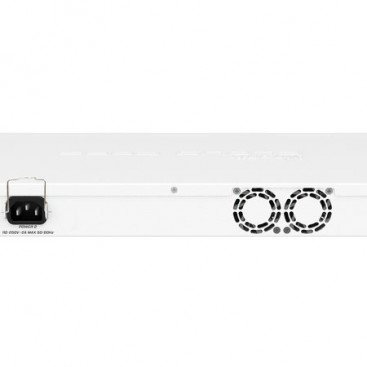

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
Specifications
| Details | |
|---|---|
| Product code | CCR1016-12S-1S+ |
| Architecture | TILE |
| CPU | TLR4-01680CH-12CE-A3b |
| CPU core count | 16 |
| CPU nominal frequency | 1.2 GHz |
| License level | 6 |
| Operating System | RouterOS v6 |
| Size of RAM | 2 GB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -20C .. +60C |
| Suggested price | $745.00 |
Powering
| Details | |
|---|---|
| Max Power consumption | 44W |
| Number of AC inputs | 2 |
| AC input range | 100-240 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 12 |
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial port | RS232 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
| Max USB current (A) | 1 |
Other
| Details | |
|---|---|
| CPU temperature monitor | Yes |
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
