RB1100AHx4 Dude Edition

RB1100AHx4 Dude Edition


Product Description

####
RB1100AHx4 Dude EditionPowerful 1U rackmount router with 13x Gigabit Ethernet ports, 60GB M.2 drive for Dude database

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

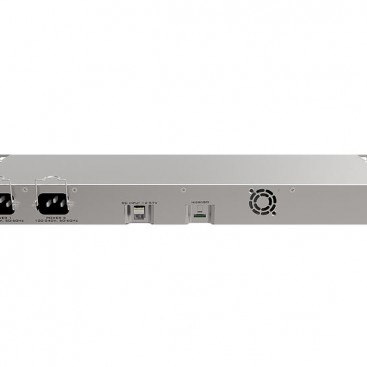

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

Specifications

Details
Product code RB1100Dx4
Architecture ARM 32bit
CPU AL21400-1400-A0-E-1AN-8-C
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 444 x 148 x 47 mm
License level 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40C .. +70C
Suggested price $349.00

Powering

Details
Max Power consumption 25W
PoE in 802.3af/at
PoE in input Voltage 20-57 V
Number of AC inputs 2
AC input range 100-240
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 12-57 V

Ethernet

Details
10/100/1000 Ethernet ports 13

Peripherals

Details
Extended storage 60GB M.2 SSD included
M.2 slots 2
SATA ports 2x SATA3
Serial port RS232

Other

Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Included parts
